产品概述

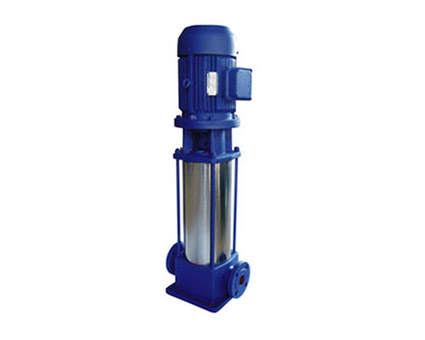

GDL型多级管道离心泵采用立式节段式外加不锈钢壳体结构，使得泵的进出口位于同一水平线上且口径相同，能象阀门一样安装于管路之中，它同时集中了多级泵之高压，立式泵之占地面积小及管道泵之安装方便的优点。具有高效节能，运行平稳等优点，且轴封采用耐磨机械密封，无泄漏使用寿命长。
产品特点
具有高效节能，运行平稳等优点，且轴封采用耐磨机械密封，使用温度≤100℃,工作压力≤1.6MPa（16kg/cm3）。流量：5-300m3/h 扬程：5-250m转速2900r/min
产品用途
GDL型泵适用于高压运行系统中输送清水或物理化学性质的液体，如高层建筑给水、锅炉给水、消防系统等输送或管道增压之用。GDLF型泵采用整体不锈钢(ZG1Cr18Ni9Ti)材质制造，适用于化工、食品、酿造、制药、纺织等行业。根据用户的要求可定制不锈钢304或316L材质。
型号 | 流量 (m3/h) | 扬程 (m) | 吸程 (m) | 电机功率 (kw) |
25GDL2-12×3 | 2 | 36 | 7.5 | 1.1 |
25GDL2-12×4 | 48 | 1.1 | ||
25GDL2-12×5 | 60 | 1.5 | ||
25GDL2-12×6 | 72 | 1.5 | ||
25GDL2-12×7 | 84 | 2.2 | ||
25GDL2-12×8 | 96 | 2.2 | ||
25GDL2-12×9 | 108 | 2.2 | ||
25GDL2-12×10 | 120 | 3 | ||
25GDL2-12×11 | 132 | 3 | ||
25GDL2-12×12 | 144 | 3 | ||
25GDL4-11×3 | 4 | 33 | 1.1 | |
25GDL4-11×4 | 44 | 1.5 | ||
25GDL4-11×5 | 55 | 2.2 | ||
25GDL4-11×6 | 66 | 2.2 | ||
25GDL4-11×7 | 77 | 3 | ||
25GDL4-11×8 | 88 | 3 | ||
25GDL4-11×9 | 99 | 3 | ||
25GDL4-11×10 | 110 | 4 | ||
25GDL4-11×11 | 121 | 4 | ||
25GDL4-11×12 | 132 | 4 | ||
25GDL4-11×13 | 143 | 4 | ||
40GDL6-12×3 | 6 | 36 | 1.5 | |
40GDL6-12×4 | 48 | 2.2 | ||
40GDL6-12×5 | 60 | 2.2 | ||
40GDL6-12×6 | 72 | 3 | ||
40GDL6-12×7 | 84 | 3 | ||
40GDL6-12×8 | 96 | 4 | ||
40GDL6-12×9 | 108 | 4 | ||
40GDL6-12×10 | 120 | 4 | ||
40GDL6-12×11 | 132 | 5.5 | ||
40GDL6-12×12 | 144 | 5.5 | ||
50GDL12-15×2 | 12 | 30 | 7 | 2.2 |
50GDL12-15×3 | 45 | 3 | ||
50GDL12-15×4 | 60 | 4 | ||
50GDL12-15×5 | 75 | 5.5 | ||
50GDL12-15×6 | 90 | 5.5 | ||
50GDL12-15×7 | 105 | 7.5 | ||
50GDL12-15×8 | 120 | 75 | ||
50GDL12-15×9 | 135 | 11 | ||
50GDL12-15×10 | 150 | 11 | ||
50GDL18-15×3 | 18 | 45 | 4 | |
50GDL18-15×4 | 60 | 5.5 | ||
50GDL18-15×5 | 75 | 7.5 | ||
50GDL18-15×6 | 90 | 7.5 | ||
50GDL18-15×7 | 105 | 11 | ||
50GDL18-15×8 | 120 | 11 | ||
50GDL18-15×9 | 135 | 15 | ||
50GDL18-15×10 | 150 | 15 | ||
65GDL24-12×2 | 24 | 24 | 6 | 3 |
65GDL24-12×3 | 36 | 4 | ||
65GDL24-12×4 | 48 | 5.5 | ||
65GDL24-12×5 | 60 | 7.5 | ||
65GDL24-12×6 | 72 | 7.5 | ||
6S5GDL24-12×7 | 84 | 11 | ||
65GDL24-12×8 | 96 | 11 | ||
65GDL24-12×9 | 108 | 15 | ||
65GDL24-12×10 | 120 | 15 | ||
80GDL36-12×2 | 36 | 24 | 5.5 | 4 |
80GDL36-12×3 | 36 | 5.5 | ||
80GDL36-12×4 | 48 | 7.5 | ||
80GDL36-12×5 | 60 | 11 | ||
80GDL36-12×6 | 72 | 11 | ||
80GDL36-12×7 | 84 | 15 | ||
80GDL36-12×8 | 96 | 15 | ||
80GDL36-12×9 | 108 | 18.5 | ||
80GDL36-12×10 | 120 | 18.5 | ||
80GDL54-14×2 | 54 | 28 | 5 | 7.5 |
80GDL54-14×3 | 42 | 11 | ||
80GDL54-14×4 | 56 | 15 | ||
80GDL54-14×5 | 70 | 18.5 | ||
80GDL54-14×6 | 84 | 18.5 | ||
80GDL54-14×7 | 98 | 22 | ||
100GDL72-14×2 | 72 | 28 | 4.5 | 11 |
100GDL72-14×3 | 42 | 15 | ||
100GDL72-14×4 | 56 | 18.5 | ||
100GDL72-14×5 | 70 | 22 | ||
100GDL72-14×6 | 84 | 30 | ||
100GDL72-14×7 | 98 | 30 |
